Astor Toilet
In stock · ready to dispatch
Will it fit your plumbing?
Yes — this pan takes both. S‑trap at 45–105mm and P‑trap at 180mm, so it connects whether your waste goes down into the floor or back into the wall.
Not sure which you have? Look at your existing pan. If the waste pipe disappears into the floor, that is an S‑trap. If it goes into the wall behind, that is a P‑trap.
S-trap
Waste goes down into the floor
45–105mm set-out
Adjustable — fits any floor waste in this range
Measured from the finished wall to the centre of the floor waste.
P-trap
Waste goes back into the wall
180mm set-out
Measured from the finished floor to the centre of the wall outlet.
- Trap
- S-trap and P-trap — one pan does both
- Pan type
- Close-coupled two piece
- Flush
- Tornado Quiet, rimless
- Size (L × W × H)
- 630 × 390 × 840mm
- Material
- Vitreous china
- Warranty
- 25 years ceramic · 3 years cistern parts · 1 year seat
Not sure which one you have? Send us a photo of your existing toilet and we’ll tell you which trap you need — before you order, not after.

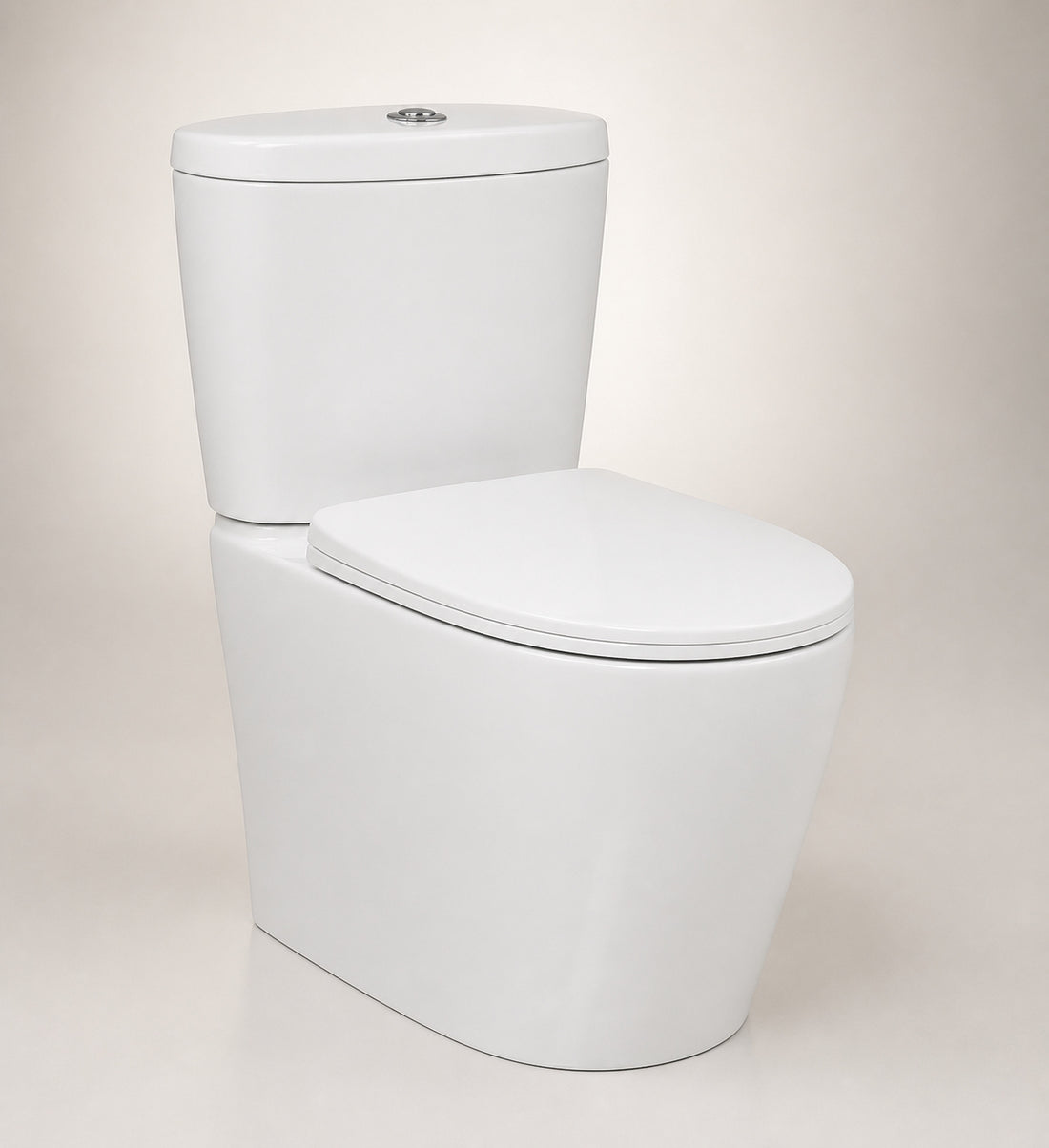

The Astor is a close-coupled two-piece toilet suite in gloss white vitreous china. It takes both an S-trap and a P-trap, so it connects whether your waste goes down into the floor or back into the wall.
Your plumbing
- S-trap — 45–105mm set-out, adjustable, measured from the finished wall to the centre of the floor waste
- P-trap — 180mm set-out, measured from the finished floor to the centre of the wall outlet
The 45mm minimum is the tightest in the range, so Astor is the one to look at when the waste sits very close to the wall.
Before you order
Measure your set-out before you buy — the trap is the single most common reason a toilet goes back. Send us a photo of your existing pan and we will confirm which trap you need. A rimless bowl has no hidden channel under the rim, so there is less to scrub. Have it connected by a licensed plumber. In stock and delivered Australia-wide.
Need a spec we haven't listed — set-out, waste position, clearances? Call (02) 8005 8259 or use the chat; we'll confirm against the carton.
