Zenith Toilet
In stock · ready to dispatch
Will it fit your plumbing?
Yes — this pan takes both. S‑trap at 179mm and P‑trap at 180mm, so it connects whether your waste goes down into the floor or back into the wall.
Not sure which you have? Look at your existing pan. If the waste pipe disappears into the floor, that is an S‑trap. If it goes into the wall behind, that is a P‑trap.
S-trap
Waste goes down into the floor
179mm set-out
Measured from the finished wall to the centre of the floor waste.
P-trap
Waste goes back into the wall
180mm set-out
Measured from the finished floor to the centre of the wall outlet.
- Trap
- S-trap and P-trap — one pan does both
- Pan type
- Floor standing, back to wall
- Flush
- Rimless
- Size (L × W × H)
- 585 × 365 × 425mm
- Material
- Vitreous china
- Warranty
- 25 years ceramic · 3 years cistern parts · 1 year seat
Not sure which one you have? Send us a photo of your existing toilet and we’ll tell you which trap you need — before you order, not after.

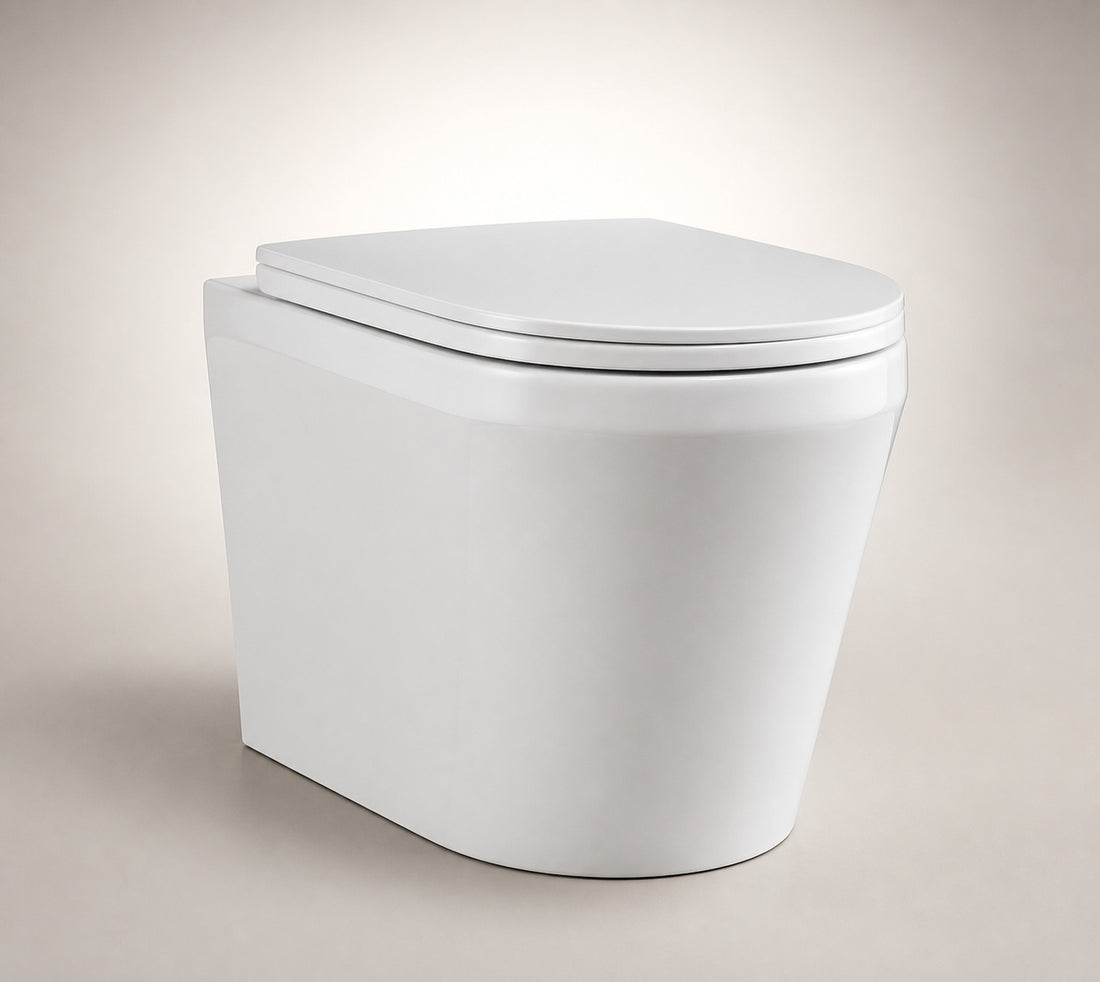

The Zenith is a floor-standing, back-to-wall toilet pan in gloss white vitreous china. It takes both an S-trap and a P-trap, and the pan sits flush to the wall so there is no gap behind it to clean around.
Cistern not included
Zenith is supplied as a pan and seat only. It is designed to run off a concealed in-wall cistern with a flush plate, which is why the price is lower than a close-coupled suite. Talk to us or your plumber about the cistern and frame before you order — it needs to be planned before the wall is closed up.
Your plumbing
- S-trap — 179mm set-out, measured from the finished wall to the centre of the floor waste
- P-trap — 180mm set-out, measured from the finished floor to the centre of the wall outlet
Before you order
Unlike the adjustable close-coupled suites, Zenith has a fixed 179mm S-trap set-out, so your floor waste has to land on it. Measure before you buy, or send us a photo of your existing pan and we will check it for you. Have it installed by a licensed plumber. In stock and delivered Australia-wide.
Need a spec we haven't listed — set-out, waste position, clearances? Call (02) 8005 8259 or use the chat; we'll confirm against the carton.
