Evora Toilet
In stock · ready to dispatch
Will it fit your plumbing?
Yes — this pan takes both. S‑trap at 50–120mm and P‑trap at 180mm, so it connects whether your waste goes down into the floor or back into the wall.
Not sure which you have? Look at your existing pan. If the waste pipe disappears into the floor, that is an S‑trap. If it goes into the wall behind, that is a P‑trap.
S-trap
Waste goes down into the floor
50–120mm set-out
Adjustable — fits any floor waste in this range
Measured from the finished wall to the centre of the floor waste.
P-trap
Waste goes back into the wall
180mm set-out
Measured from the finished floor to the centre of the wall outlet.
- Trap
- S-trap and P-trap — one pan does both
- Pan type
- Close-coupled two piece
- Flush
- Rimless
- Size (L × W × H)
- 620 × 390 × 840mm
- Material
- Vitreous china
- Warranty
- 25 years ceramic · 3 years cistern parts · 1 year seat
Not sure which one you have? Send us a photo of your existing toilet and we’ll tell you which trap you need — before you order, not after.

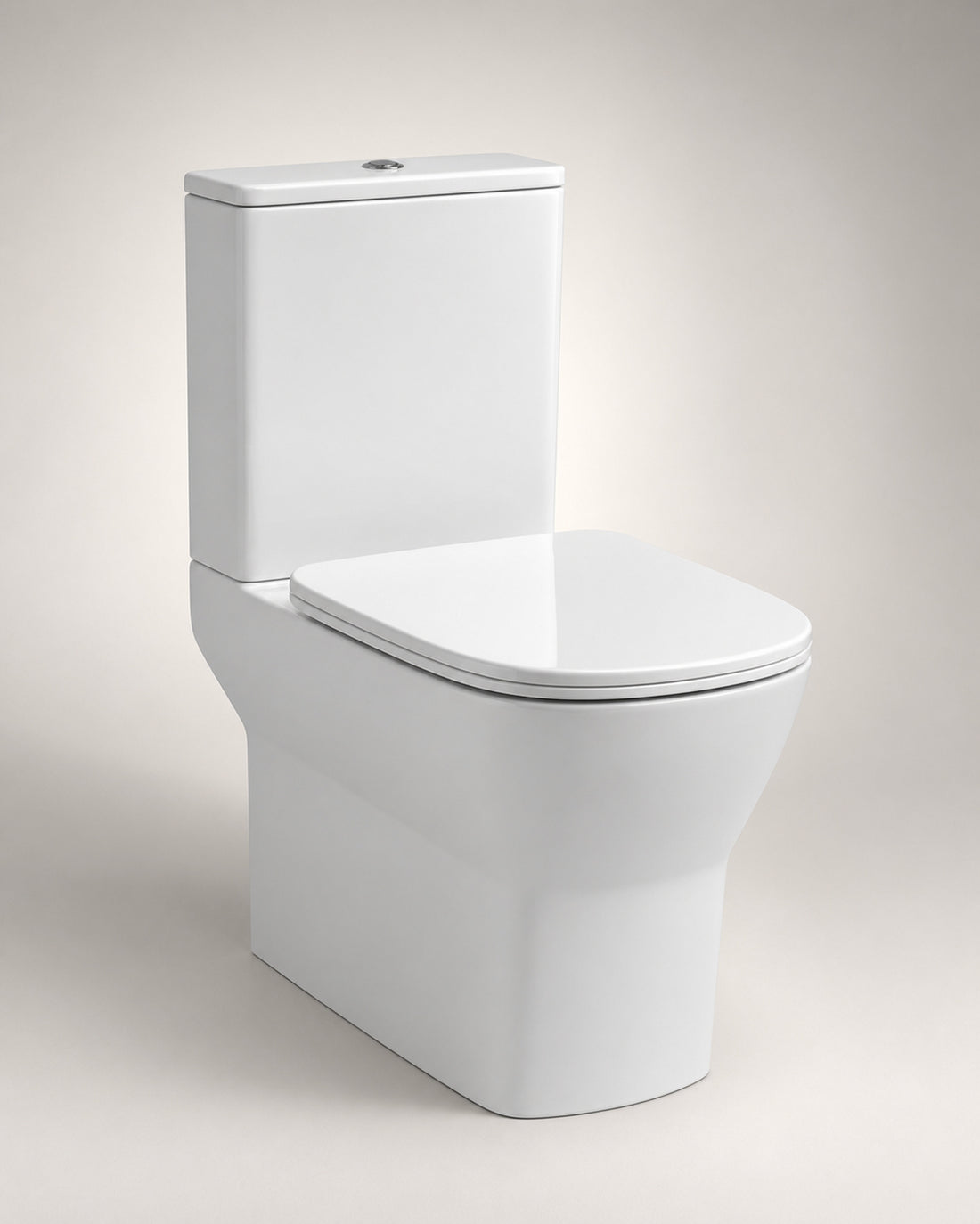

The Evora is a close-coupled two-piece toilet suite in gloss white vitreous china. It takes both an S-trap and a P-trap, so it connects whether your waste goes down into the floor or back into the wall.
Your plumbing
- S-trap — 50–120mm set-out, adjustable, measured from the finished wall to the centre of the floor waste
- P-trap — 180mm set-out, measured from the finished floor to the centre of the wall outlet
At 620mm long it is the shortest close-coupled suite in the range, which makes it the easiest of the four to fit into a powder room or a tight ensuite.
Before you order
Measure your set-out before you buy — the trap is the single most common reason a toilet goes back. Send us a photo of your existing pan and we will confirm which trap you need. A rimless bowl has no hidden channel under the rim, so there is less to scrub. Have it connected by a licensed plumber. In stock and delivered Australia-wide.
Need a spec we haven't listed — set-out, waste position, clearances? Call (02) 8005 8259 or use the chat; we'll confirm against the carton.
Australia-wide delivery from $80, calculated at checkout — to the nearest accessible point only (kerbside or driveway; drivers can't carry items inside or upstairs). Sydney pick-up available.
